Mechanics Trucks

Knapheide mechanics bodies provide the storage, lifting power, and onboard equipment needed for on-site service work. Configure with cranes, compressors, lighting, and organized drawer systems to keep your crew efficient and ready.

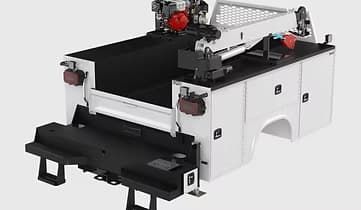

White service truck bed with crane and storage compartments. Black rear bumper.

Steel KMS16 Mechanics Service Truck

Suitable for Class 3–5 trucks and is equipped with an electric crane offering a 20-foot reach and a maximum lifting capacity of 4,000 lbs. The body features double-paneled doors made of galvanneal steel, a 21-inch work surface bumper, and integrated LED work lights. The cargo area includes four D-ring tie downs, each with a 2,000 lb working load capacity. The KMS16 also offers a crane reinforcement kit, allowing for the incorporation of a crane up to 4,000 lb capacity (16,000 ft-lb max.) onto the rear curbside corner of the body. Available in both steel and aluminum.

White service truck bed with crane and storage compartments.

Aluminum KMS16 Mechanics Service Truck

Anticipate identical compatibility and specs as its steel sibling but constructed from lightweight, naturally corrosion resistant aluminum to deliver savings in fuel consumption and payload capacity.

White service truck bed with crane, black bed interior, and storage compartments.

Steel KMS30 Mechanics Service Truck

Designed for Class 3–5 trucks and offers the option of either an electric or hydraulic crane with a 21-foot reach and a maximum lifting capacity of 5,000 lbs. The body includes double-paneled galvanneal steel doors, a 12-inch work surface bumper with an outrigger tube, and integrated LED work lights. The cargo area is equipped with six D-ring tie downs, each rated at 2,000 lbs, ensuring secure transport of tools and equipment. The KMS30 also features a rotary screw hydraulic compressor, providing 35 CFM on 11-foot models.

White service truck body with a crane, welding equipment, and storage compartments.

KMT1 Mechanics Truck

Engineered for Class 5 and 6 chassis with 19.5-inch tires, accommodating crane load capacities up to 8,600 lbs. Constructed from rugged galvanneal steel, it features a 21-inch work surface bumper with a lockable through compartment, providing a functional workspace. The truck is equipped with a 55,000 ft-lb crane offering a 21-foot hydraulic reach, supported by hydraulic outriggers for enhanced stability during lifting operations. Additional features include LED work lights for low-light conditions, a cab protector with a fully punched window for visibility, and an integrated master locking system for compartment security. The cargo area is lined with Knapliner for durability and corrosion resistance. Available in both steel and aluminum.

White service truck bed with crane and tool storage compartments.

KMT2 Mechanics Truck

Built to handle more demanding lifting applications with a crane capacity of up to 12,000 lbs. It features a 66,000 ft-lb crane with a 21-foot hydraulic reach, supported by hydraulic out-and-down outriggers for optimal stability. The body includes double-paneled doors made of galvanneal steel, integrated LED work lights, and a 24-inch work surface bumper with a lockable compartment. The cargo area is equipped with six D-ring tie downs, each providing a 2,000 lb working load capacity, ensuring secure transport of equipment. The KMT2 also incorporates a rotary screw hydraulic compressor, delivering 35 CFM on 11-foot models and 60 CFM on 13- and 14-foot models.

White service truck with crane and welding unit.

KMT3 Mechanics Truck

Compatible with Class 6–8 trucks and designed for the most demanding lifting tasks. It boasts a 70,000 ft-lb crane with a 30-foot hydraulic reach and a maximum lift capacity of 14,000 lbs. The truck is equipped with both front and rear hydraulic outriggers to ensure stability during heavy lifts.Features include double-paneled galvanneal steel doors, a 28-inch work surface bumper with a lockable compartment, and integrated LED work lights. The cargo area contains six D-ring tie downs, each rated at 2,000 lbs, and is lined with Knapliner for enhanced durability. The KMT3 also features a rotary screw hydraulic compressor, providing 35 CFM on 11-foot models and 60 CFM on 13- and 14-foot models.

Ready to Get Started?


Request a quote and we’ll help you select the right body and equipment for your job needs.
